SPINAL IMPLANTTESTS

Spinal Implants are used in the spine part of the body and have an important place due to various spinal disorders. The main spinal implant tests are given below.

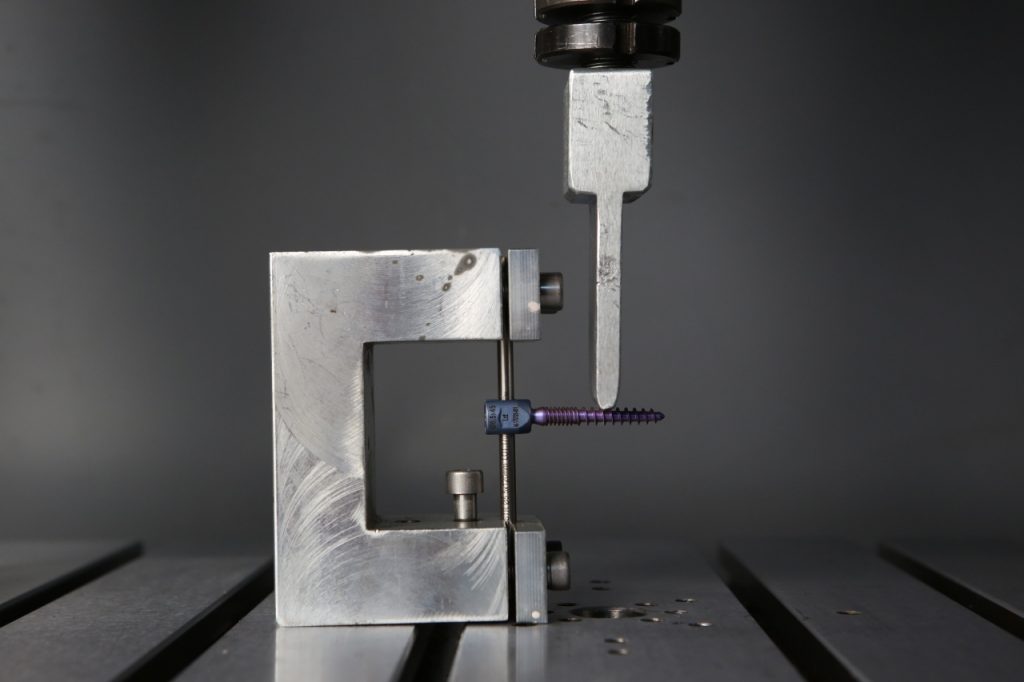

Spinal construct for Spinal Screw, Spinal Rod and Connectors is simulated in ASTM F1717 testing. And the ASTM F1717 test is applied to determine the static strength, torsional strength, and fatigue strength. In addition, Spinal Screws, Rods and Hooks are tested according to ASTM F2193, ASTM F1798 standards. All tests are within the scope of accreditation of our laboratory.

ASTM F2077, ASTM F2267 and ASTM F2346 tests are performed for Spinal Cage and Spinal Disc products. These tests determine the static strength and fatigue life of the products.

SAMPLE INFO
SPINAL  YAPI (vida+rod) ASTM F1717 Standard Test Methods for Spinal Implant Constructs in a Vertebrectomy Model
SPINAL ROD – SCREW ASTM F2193 Standard Specifications and Test Methods for Components Used in the Surgical Fixation of the Spinal Skeletal System
HOOK AND SPINAL SCREW ASTM F1798 Standard Test Method for Evaluating the Static and Fatigue Properties of Interconnection Mechanisms and Subassemblies Used in Spinal Arthrodesis Implants
CAGE ASTM F2077 Test Methods For Intervertebral Body Fusion Devices
CAGE ASTM F2267 Standard Test Method for Measuring Load Induced Subsidence of Intervertebral Body Fusion Device Under Static Axial Compression
DISC ASTM F2346 Standard Test Methods for Static and Dynamic Characterization of Spinal Artificial Discs
